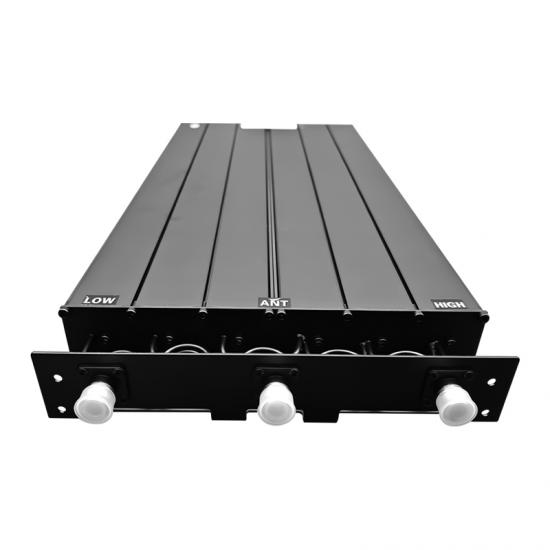

High Quality 150W 138-156MHz 152-175MHz Duplexer N/BNC-F High Isolation 80dB 1.50VSWR RF Duplexer for DAS Radio Repeater

138-156MHz 152-175MHz Duplexer N/BNC-F, Low PIM, High Isolation. It's Easy For Installation.

Item NO.:
SGQ-VHF -150
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Grey

Inquiry now

Products Details

Product Name

150W 138-156MHz 152-175MHz Duplexer N/BNC-F High Isolation 80dB 1.50VSWR RF Duplexer for DAS Radio Repeater.

Product Features

◆Compact, low weight

◆Low PIM

◆High reliability

◆Simple installation

Technical &Mechanical Specifications

Product Name	Dual-Band Combine
Frequency Band(MHz)	138-156MHz 152-175MHz
Maximum Input Power	150W
Insertion Loss	1.2 dB
VSWR	≤1.50
Frequency Spacing(MHz)	1-10MHz
Isolation	80dB
Normal Impedance	50Ω
Connector	N-F/BNC-F
Operating Temperature	-20℃ - +50℃
Weight(kg)	3KG
Dimensions	519.5×249×45(±0.5mm)
Application	Wireless Communication System

Outline Pictures:
